Truss shop drawings and related documents must be reviewed and approved by the county prior to truss erection. Those who choose to submit their truss package after permit issuance must do so as a revision in ProjectDox1. Standard revision fees will apply. Learn more on how to submit a revision to an issued ePlan.

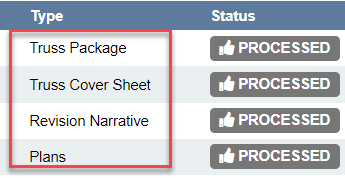

The truss shop drawing package must be placed in the ProjectDox “Documents” folder and include the following to pass prescreen review:
- Profile sheets for all truss types in a single PDF file with a valid electronic signature of the Virginia-licensed designer.
- Truss layout plan.
- A completed Fairfax County Truss Plan Cover Sheet.
1 For permit applications made originally with paper plans prior to March 25, 2020, please submit your truss shop drawing package here.
